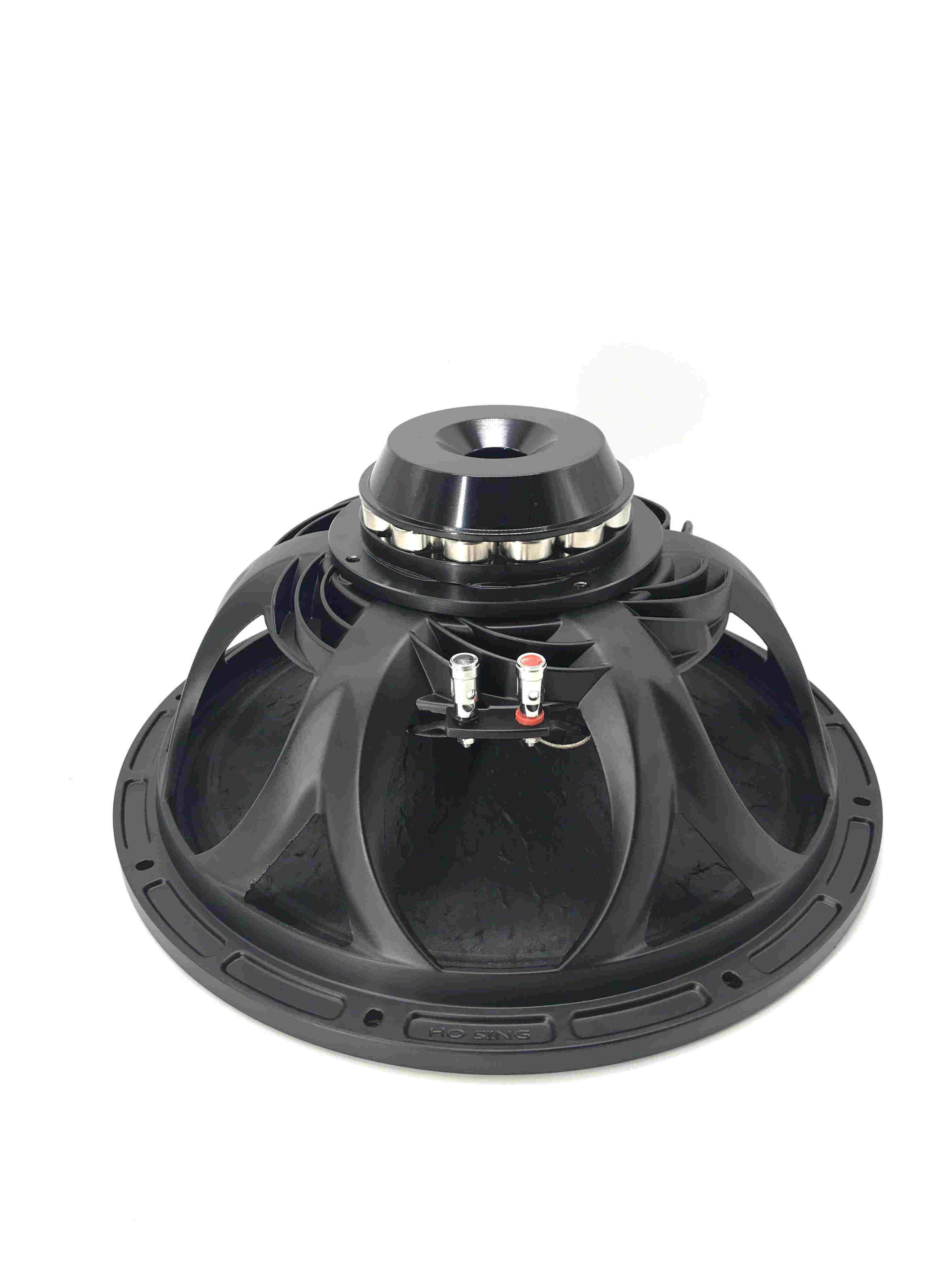

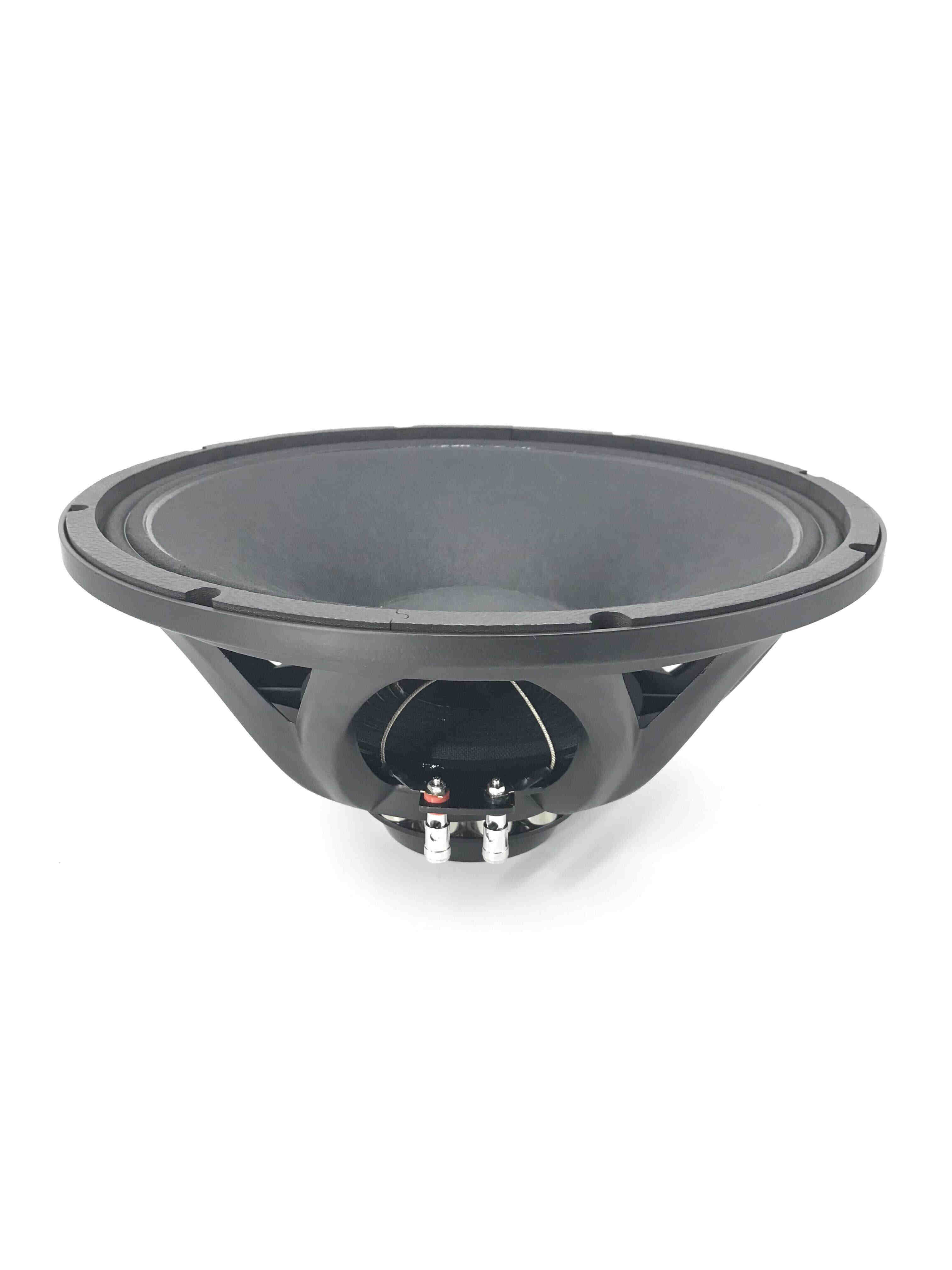

15’’ WOOFER
Model: XD15751
General Specification/标称规格
|
Nominal diameter |
公称直径 |
380mm/15 inch |
|
The overall diameter |
整体直径 |
396mm |
|
Install screw hole diameter |
螺孔安装直径 |
376mm |
|
Hole diameter |
音箱开孔直径 |
356mm |
|
Magnet diameter |
磁体外径 |
Neodymium |
|
Voice coil diameter |
音圈直径 |
75mm/3 inch |
|
Voice coil material |
线材 |
Copper/in-outside |
|
Surround design |
折环设计 |
M Type edge |
|
Net weight |
净重 |
5kg |
|
Shipping box(2pcs) |
包装尺寸 |
41*41*39.5cm |
Technical Parameters/技术参数
|

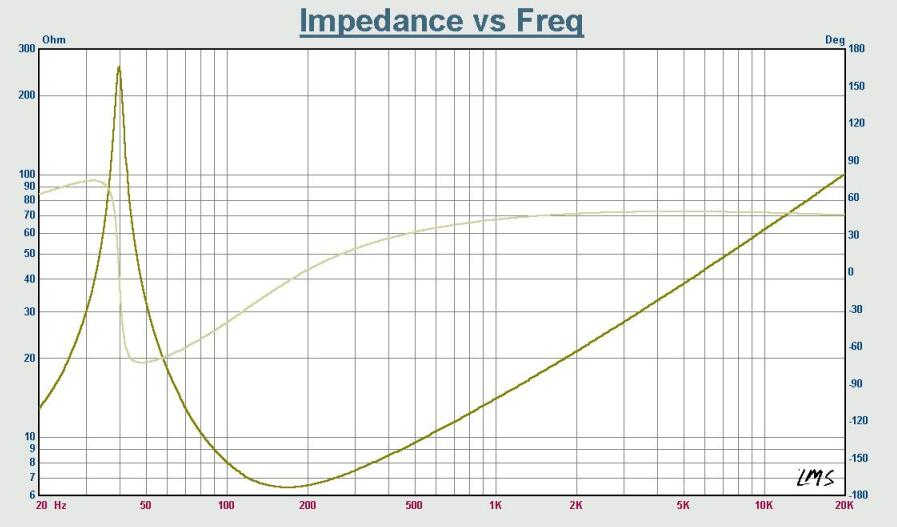

Nominal impedance |
额定阻抗 |
8Ω |
|
Nominal power(Iec) |
额定功率 |
450W |
|
Program power |
最大功率 |
900W |
|

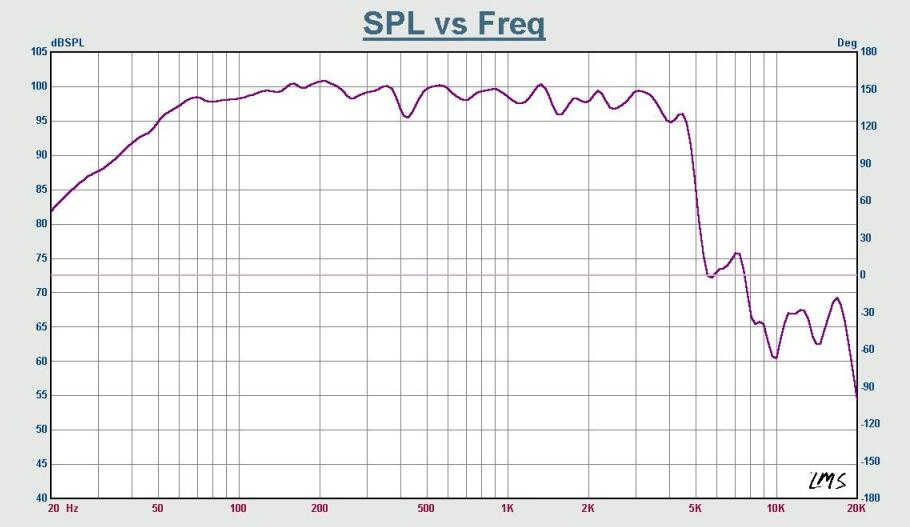

Sensitivity |
灵敏度 |
98dB |
|
Frequency range |
频率范围 |
41-3200Hz |

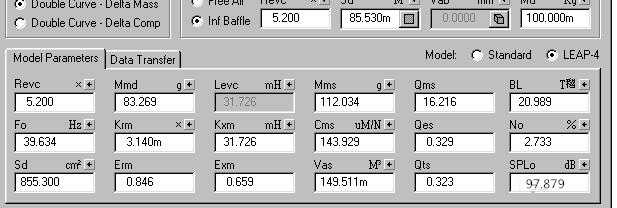

T.S Parameters/T.S 参数
|
Fs |
谐振点效率 |
39.832Hz |
|
Re |
直流阻抗 |
5.0Ω |
|
Qes |
电品质因数 |
0.378 |
|
Qms |
机械品质因数 |
17.768 |
|
Qts |
总品质因数 |
0.392 |
|
Vas |
有效容积 |
147.283m³ |
|
Mms |
振动质量 |
116.218g |
|
Bl |
磁力 |
20.145N/A |
|
Cms |
力顺 |
142.223Um/n |
